Boolean operations

Relevant to Blender v2.31

Boolean operations are particular actions which can be taken only on mesh type objects. While they will work for all Mesh objects, they are really intended for use with solid, closed objects with a well defined interior and exterior region. Thus, it is very important to define the normals in each object consistently, that is all each normal of each face should point outward. See the chapter called Basic Mesh Modelling for further info on normals and on why you can end up with normals pointing partuially outward and partially inward.

In the case of open objects, the interior is defined mathematically by extending the boundary faces of the object to infinity. As such, you may find that you get unexpected results for these objects.

A boolean operation never affects the original operands, the result is always a new Blender object.

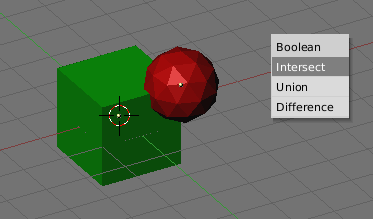

Boolean operations are invoked by selecting exactly two meshes and pressing WKEY. There are three types of boolean operations to choose from in the popup menu, Intersect, Union and Difference.

The boolean operations also take materials and UV-Textures into account, producing objects with material indices or multi UV-mapped objects.

Consider the object Figure 7.

• The Intersect operation creates a new object whose surface encloses the volume common to both original objects.

• The Union operation creates a new object whose surface encloses the volume of both original objects.

• The Difference operation is the only one in which the order of selection is important. The active object (light purple in wireframe view) is subtracted from the selected object. That is, the resulting object surface encloses a volume which is the volume belonging to the selected and inactive object, but not to the selected and active one.

Figure 8 shows the results of the three operations.

The number of polygons generated can be very large compared to the original meshes, especially when using complex concave objects. Furthermore, the polygons that are generated can be of generally poor quality: very long and thin and sometimes very small. Try using the Mesh Decimator (EditButtons F9) to fix this problem.

Vertices in the resulting mesh that fall on the boundary of the two original objects often do not match up, and boundary vertices are duplicated. This is good in some respects because it means that you can select parts of the original meshes by selecting one vertex in the result and pressing the select linked button (LKEY). This is handy if you want to assign materials and such to the result.
